"Join"
The objective of this project was to collaborate with my colleagues and construct a furniture structure while creating functional attributes related to modularity. Our collaboration started with learning about solid wood material and construction which includes joinery, structure, accuracy and finishing.
We were tasked with creating a well-crafted form that was indistinguishable from the other modules created by our colleagues. This form would then be only a single unit in the design and would require our creativity to produce a modular design when combined with the other units. This project was done in collaboration with Hattie Carr and Amelia Walker.
Concept
The advancements we made for this furniture structure were made from found materials. In order to reduce waste, we decided to think creatively about the materials that were already available to us while simultaneously using techniques that we were unfamiliar with. We discovered the multiple advancements we could make and began to build our concept from there. Our final models each come with a triangular marble table top and an upholstered seat cushion that are interchangeable in order to provide a customizable experience. The overall modular design gives different options of use when they're together. Users have the options of sitting with friends, which promotes social interaction, and sitting with a friend and a side table for your drinks, to name a few. Individually, the user has an option of a seat or side table which can be switched at any time. Each upholstered fabric seat is unique, allowing the individuality to remain after the advancements were made. Creating this unique experience has broadened my skillset and has given me confidence with these materials and any other materials I may not be familiar with in the future.
Process

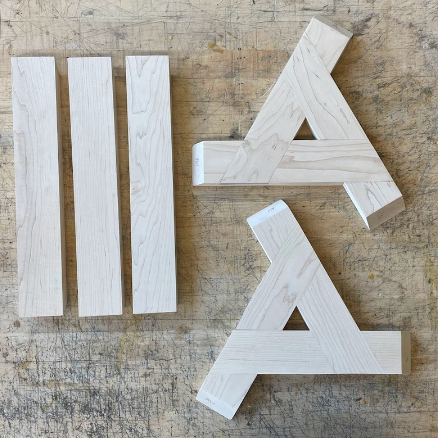

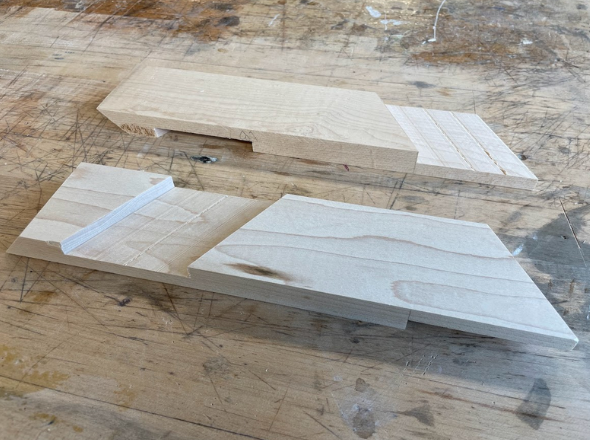

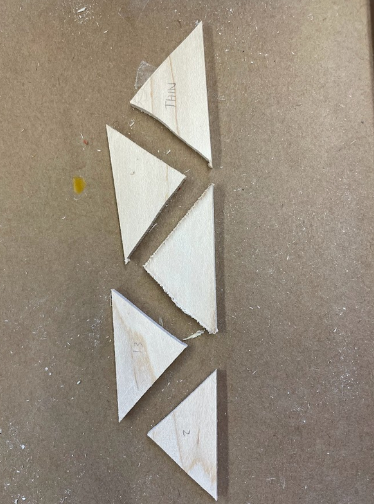

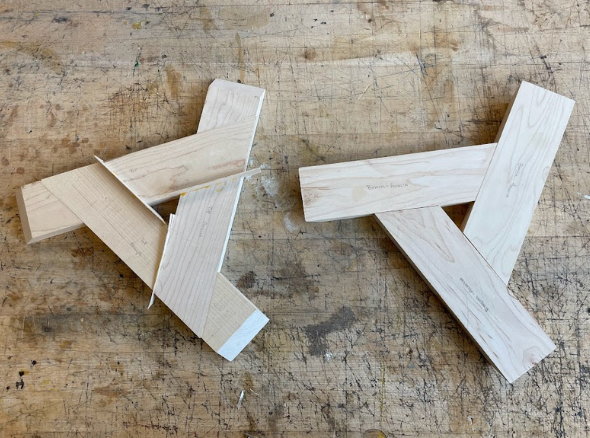

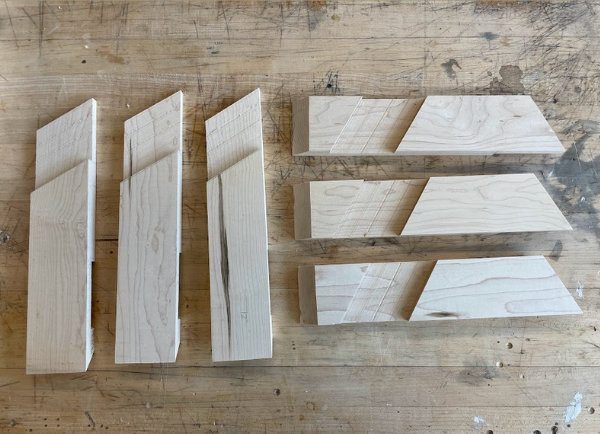

Cutting individual parts and combining.

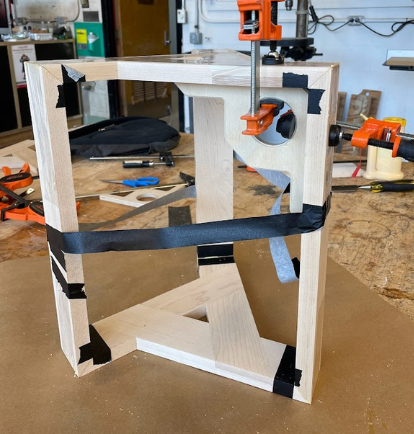

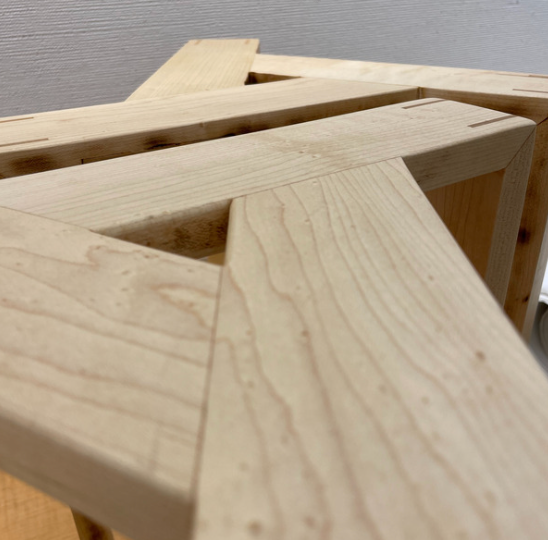

Sanding down the surfaces and building the final form.

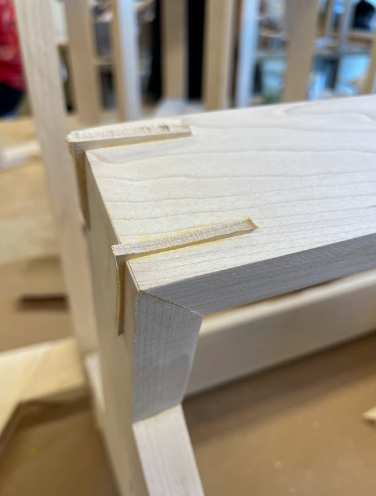

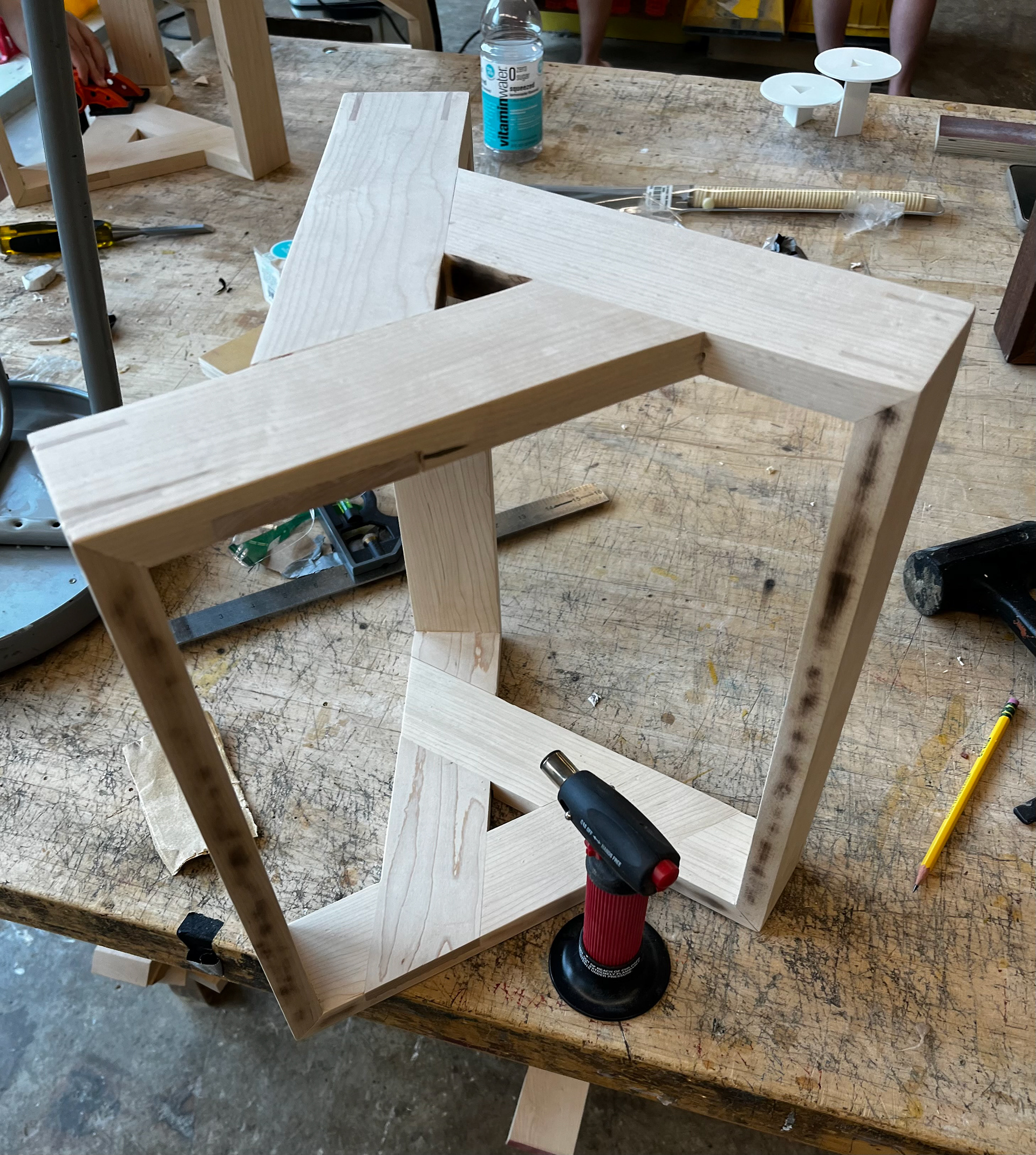

Strengthening the structure with finger joints and torching the wood before applying Danish Oil as a finish.
Modular Advancements

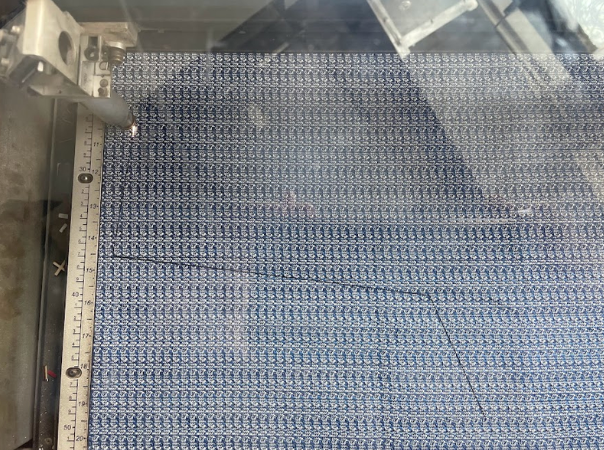

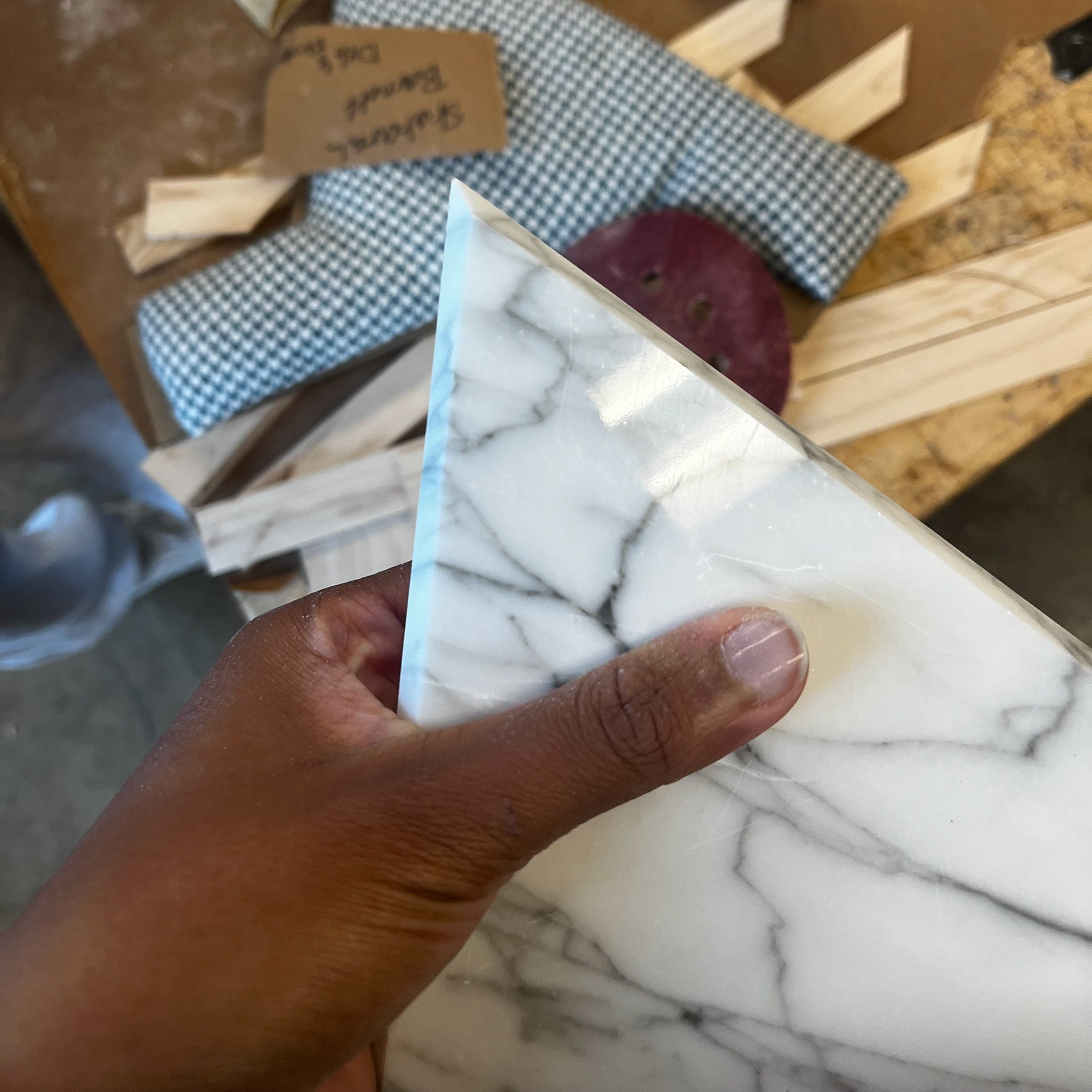

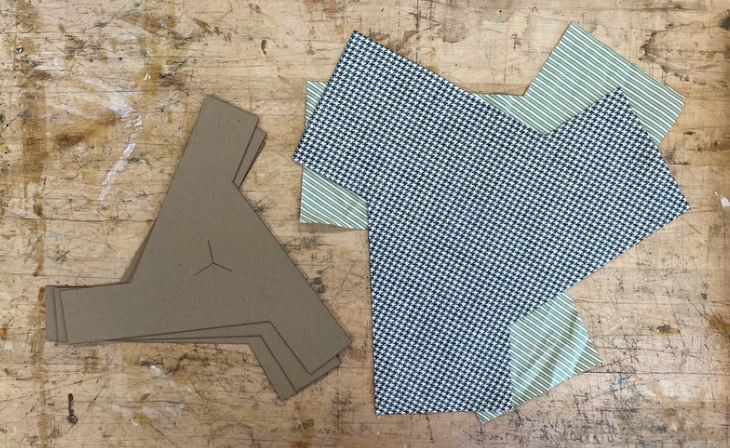

We wet sanded the marble and laser cut the chipboard & fabric.

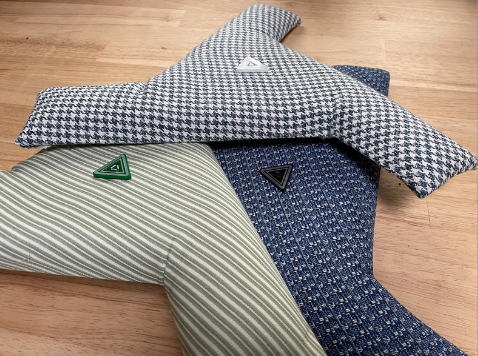

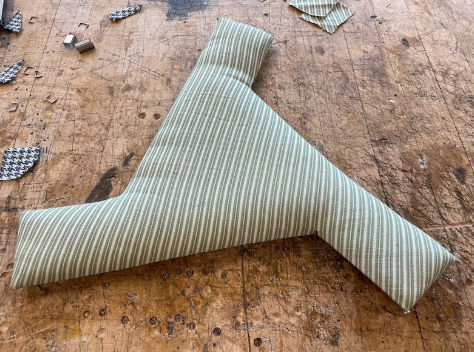

Attaching upholstery and sewing in buttons.

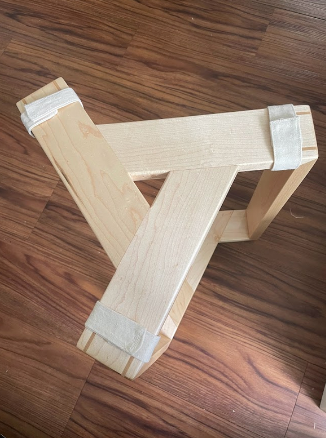

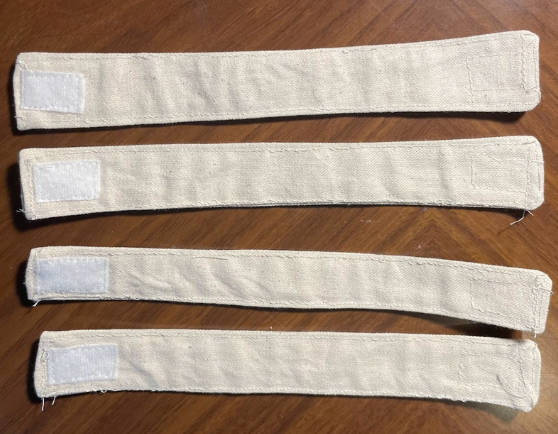

Gluing velcro onto upholstery piece.

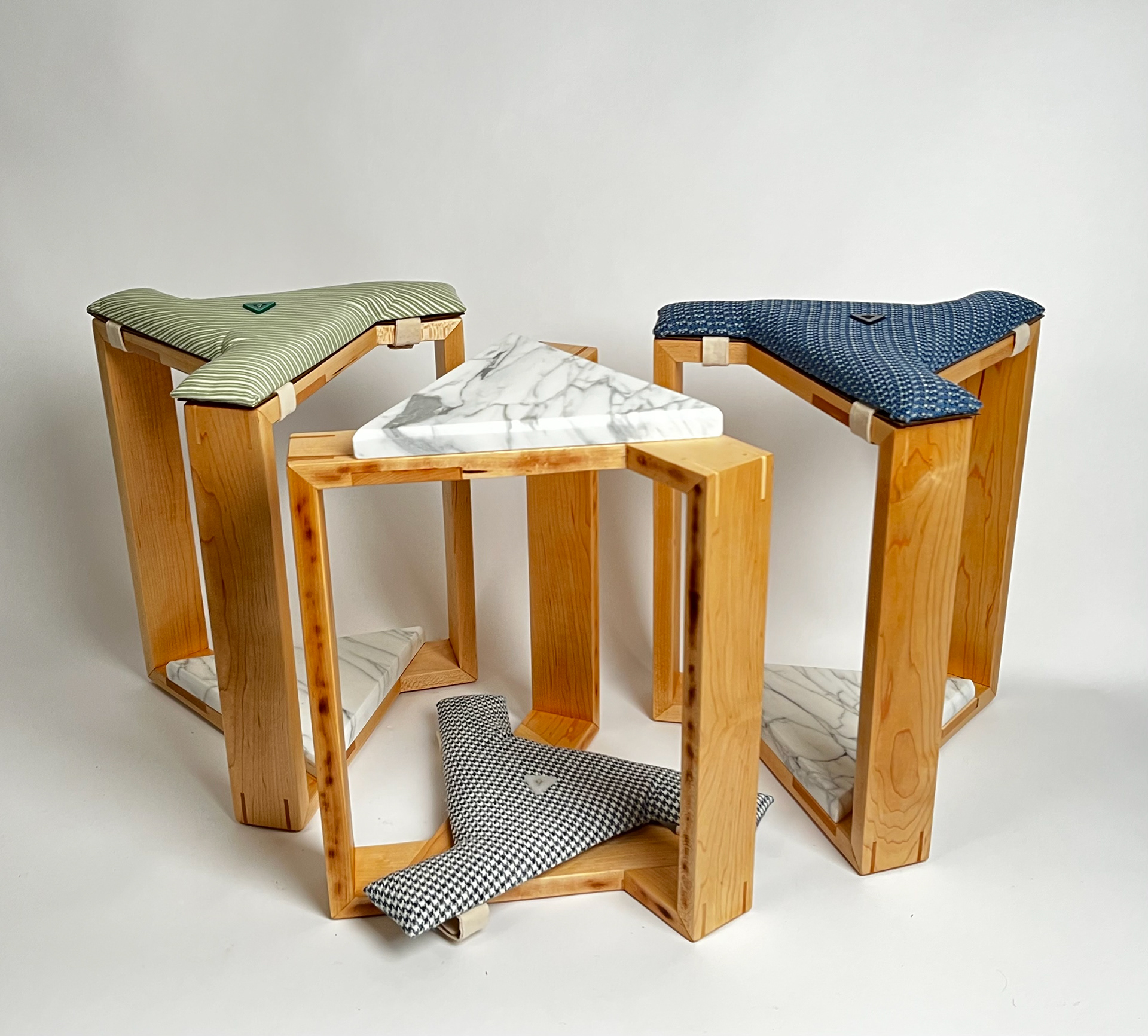

Final Views
Detail View
Top View
Side View
How It Works

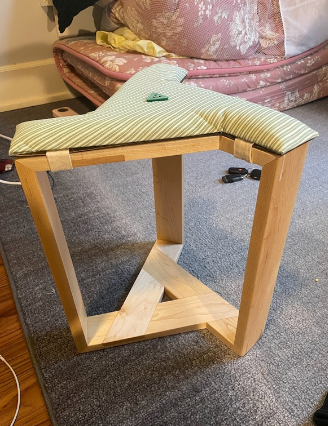

Seat

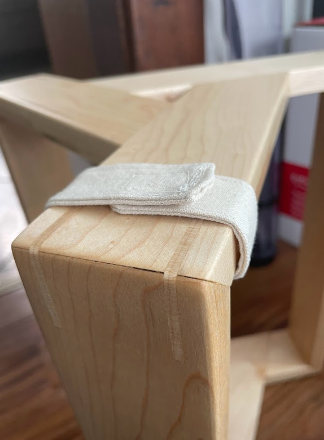

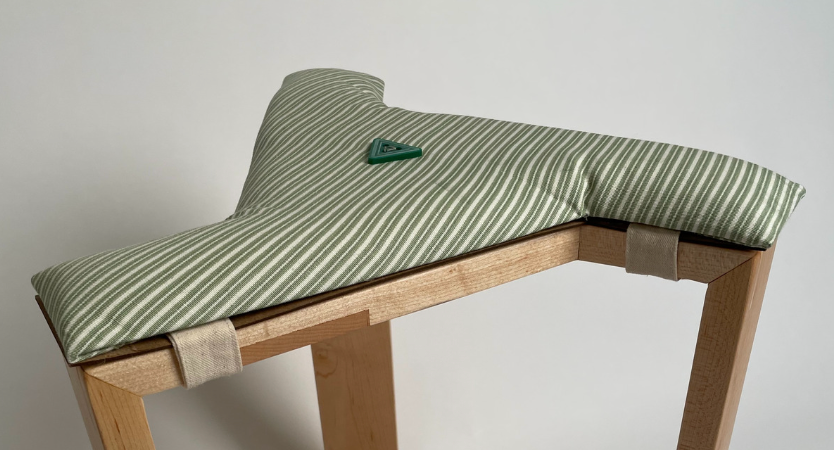

The advancements are interchangeable. Use the ties on the upholstered cushion to secure it to the top of the table.
Table

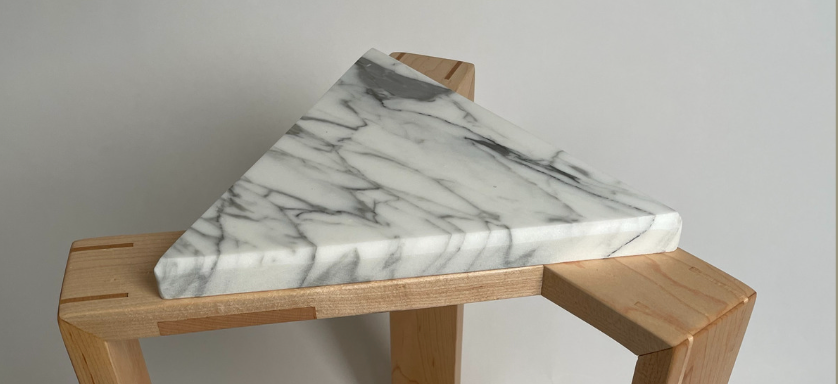

The marble piece is weighty and has enough friction to sit on top of the wood without sliding.
Store the piece not in use on the bottom layer.
Tools
Tools & Machines
1. Table Saw
2. Chop Saw
3. Panel Saw
4. Japanese Saw
5. Laser Cutter
6. Chisels
7. Scrapers
8. Sand Paper / Sander
9. Oil Finish and Rags
10. Needle and Thread
11. Sewing Machine
12. Hot Glue Gun
13. Wet Saw and Sander
Parts List
1. Maple Wood Planks
2. Wood Glue
3. Oil Finish
4. Upholstery Fabric
5. Upholstery Foam
6. Chip Board
7. Acrylic
8. Thread
9. Hot Glue

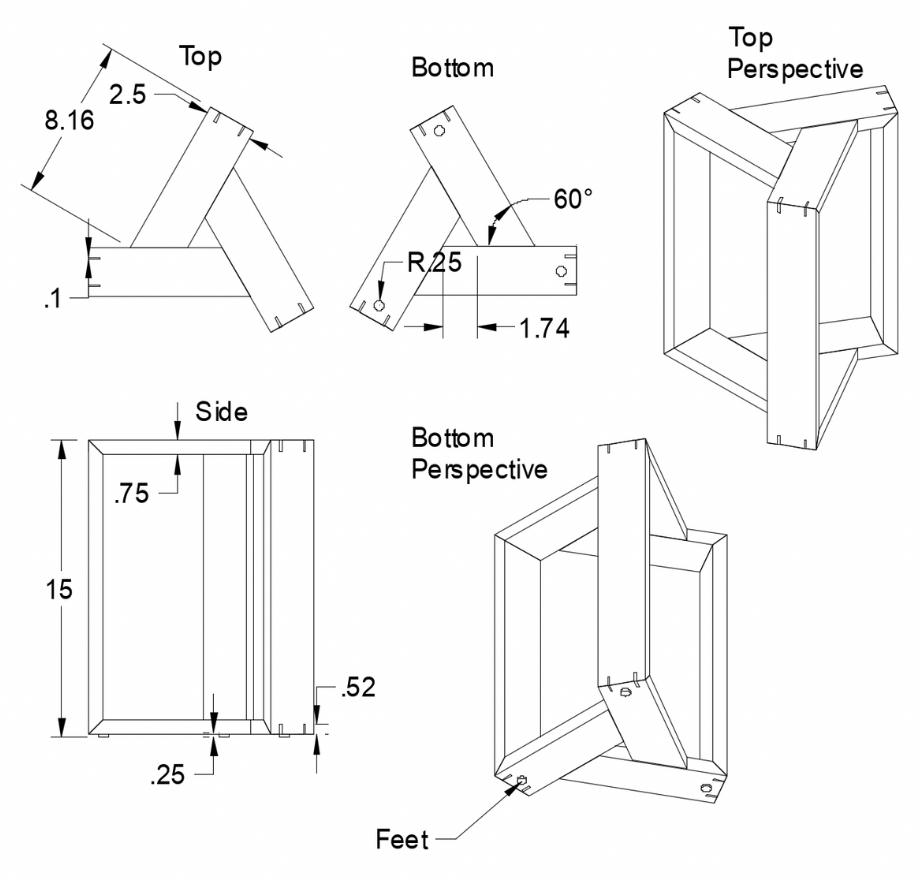

Dimensions in inches.
